4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter

Price:$0.01 – $476.19

Rated power: 4kw/5kw/6kw
Battery voltage: 48V
Rated current: 50A
Recharging current: 15A (mains mode)

Clear
Add to WishlistRemove
Add to Wishlist
Send InquiryLive Chat
SKU: JE E4-6 Category:
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 1
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 2
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 3
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 4
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 5
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 6
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 7
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 8
4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 9
Features

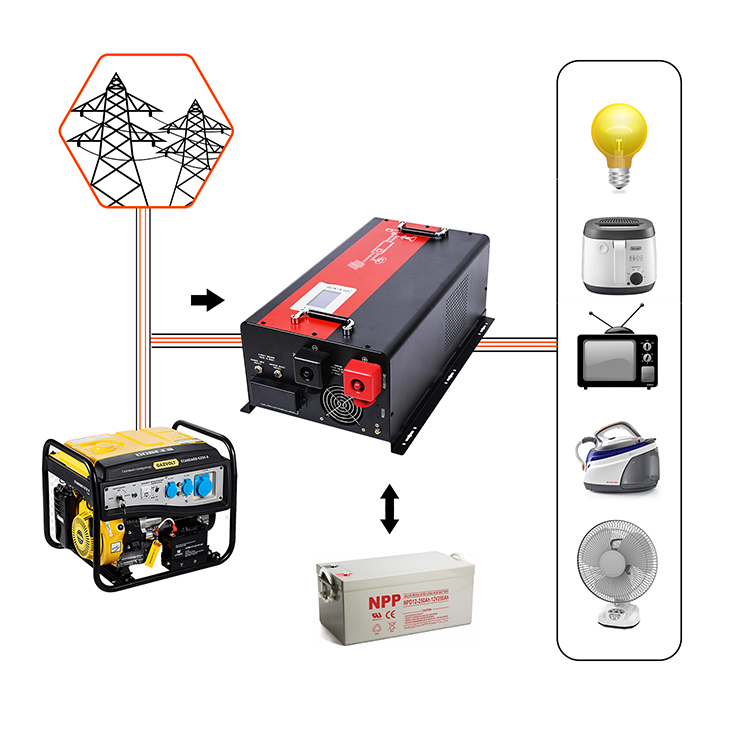

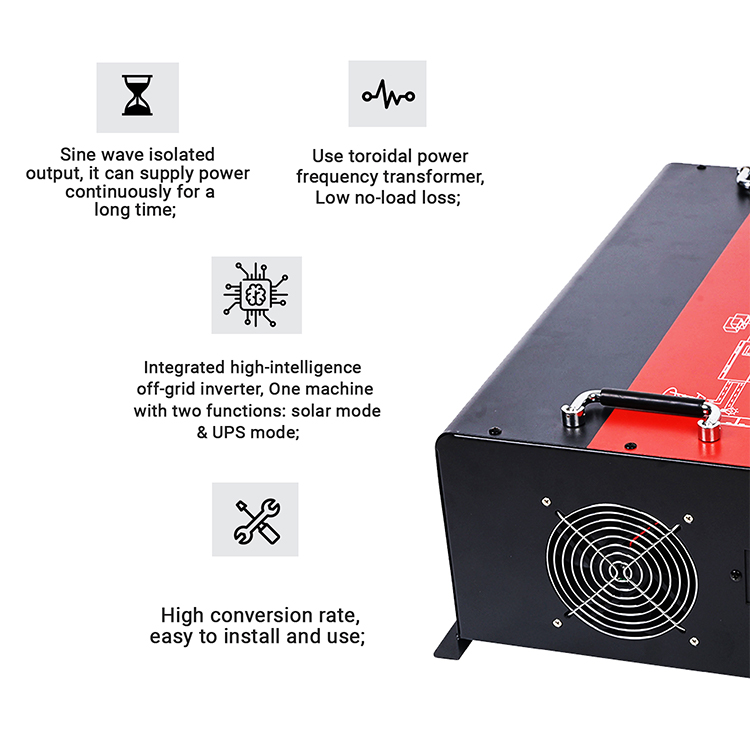

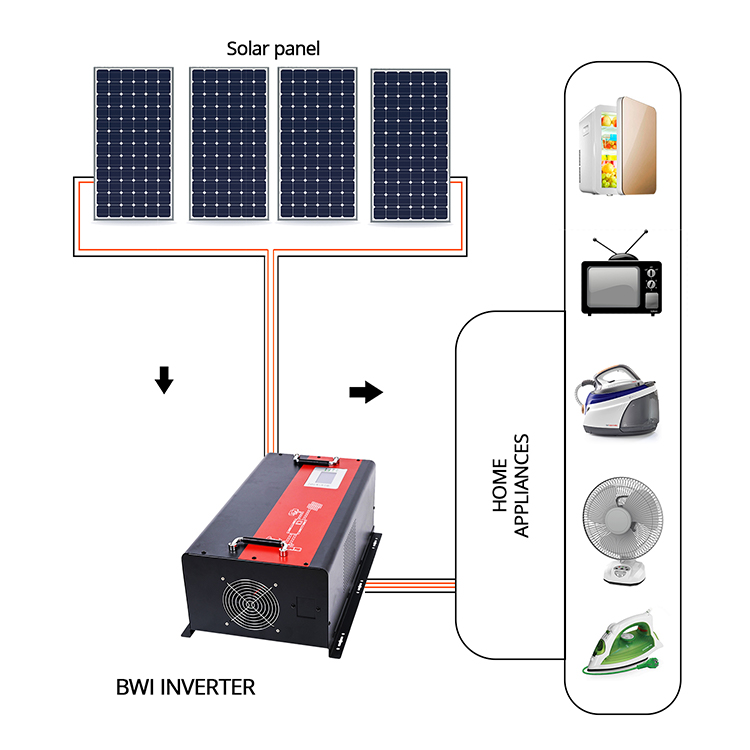

1. Integrated high-intelligence off-grid inverter, one machine with dual functions: solar mode & UPS mode;
2. Sine wave isolation output, can continuously supply power for a long time;
3. Using toroidal power frequency transformer, low no-load loss;
4. LCD displays battery, input/output data, and automatically turns off the backlight after long-term work;
5. The actual data of the controller can be displayed through the host LCD screen;
6. High conversion rate, easy to install and use;
7. The all-in-one machine has built-in high-efficiency PWM controller;

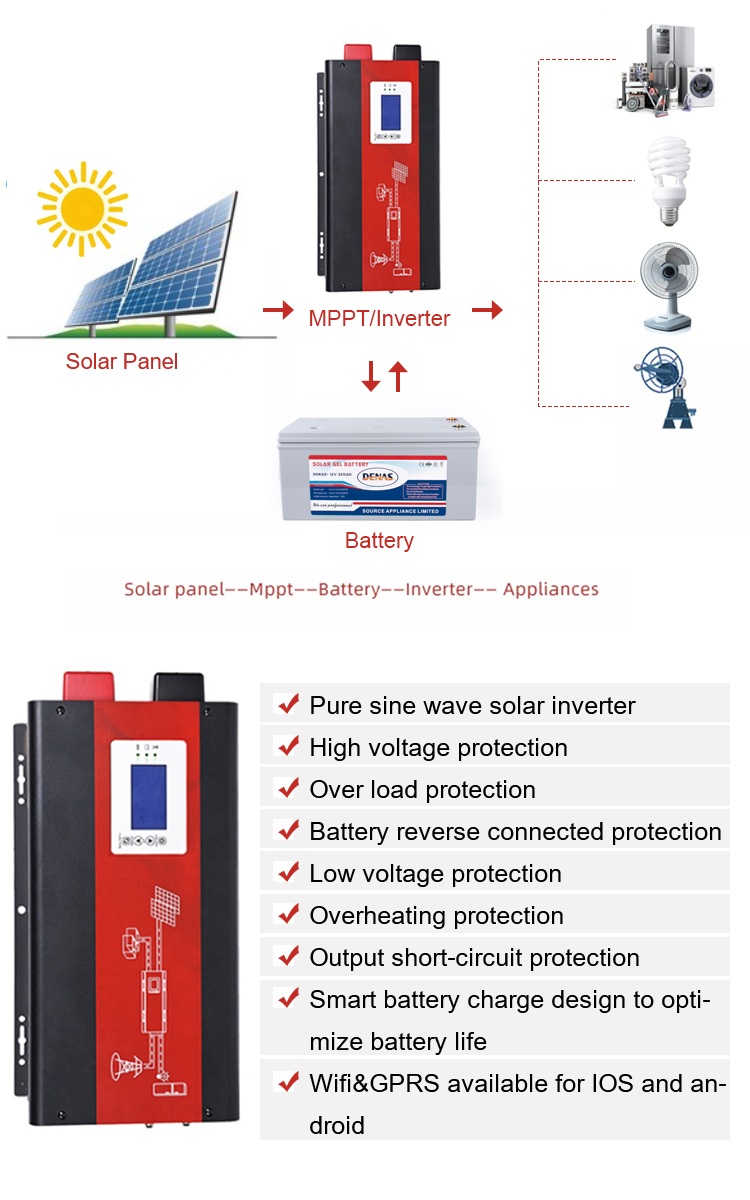

8. With overload, overheat, short circuit, overvoltage, low voltage and other protection and buzzer alarm.

4kw 5kw 6kw Power frequency inverter controller all-in-one machine can have built-in MPPT solar inverter - Solar Inverter - 10

JE E12V1000/JE E24V1000 JE E24V2000/JE E48V2000 JE E48V3000/JE E24V3000
Rated power 4000W 5000W 6000W
Battery voltage 48V 48V 48V
Rated current 50A 50A
DC voltage 24V 48V
Access to PV power range 1200W 2400W
Input PV Voltage Range 30-65V 60-100V
Recharging current 15A (mains mode)
Charging voltage Single battery default 13.8V, up to 14.5V adjustable
Mains voltage 220VAC (±20%)
Mains frequency 50Hz/60Hz automatic recognition
The output voltage Mains mode and mains synchronization; battery inverter mode: 220VAC±3%
Output frequency Inverter mode: 50Hz/60Hz

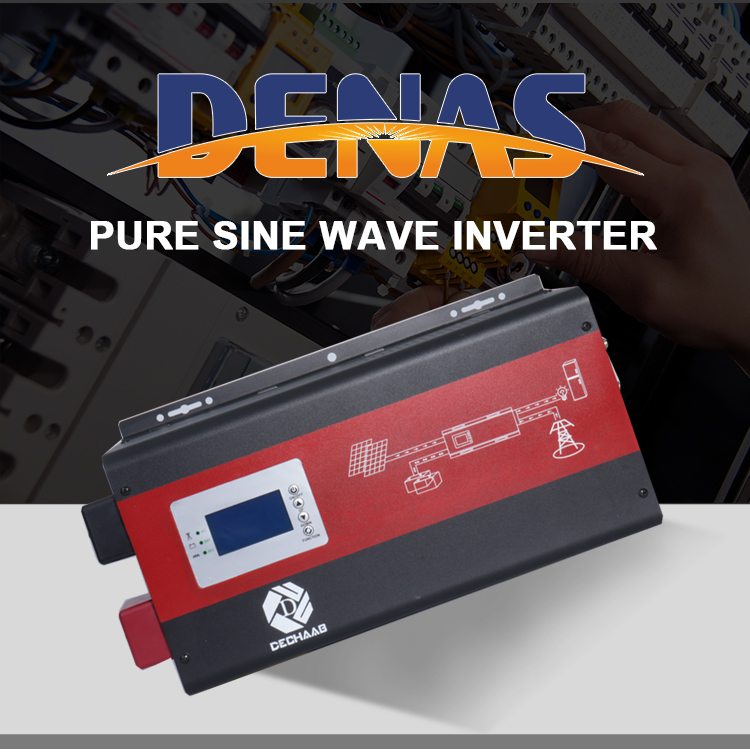

Output waveform pure sine wave
Inverter efficiency >85%
Conversion time ≤10ms
Battery protection When the voltage of a single cell is lower than 10V, it will be turned off, and if it is lower than 10.8V, it will be transferred to the mains. If the voltage is higher than 13.3V, it will be switched back to the inverter.
Overload power Full load alarm, overload 110%-120%/30 seconds automatic shutdown, >150%, 3 seconds automatic shutdown
Protective function Overcharge/overdischarge protection, overload protection, short circuit protection, over temperature protection

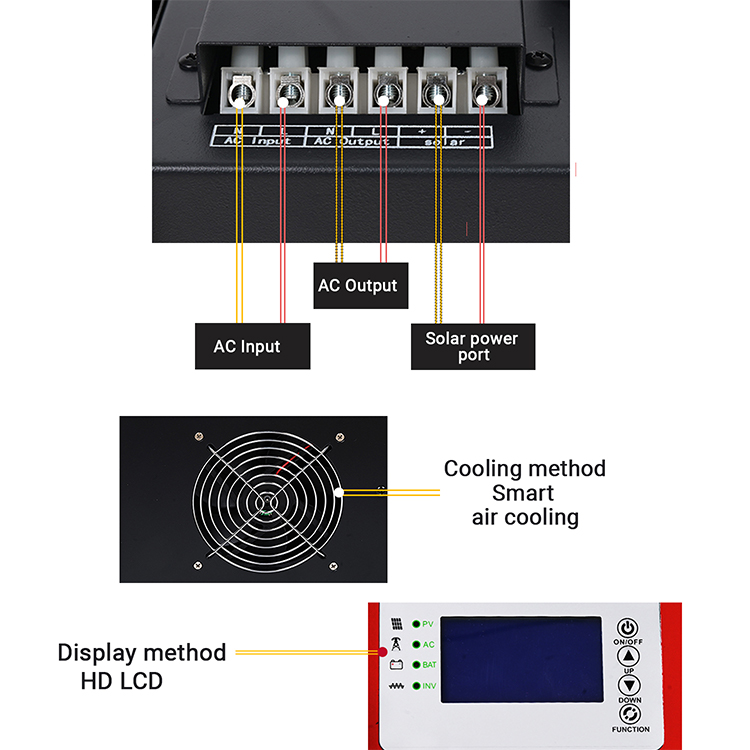

Display method LCD (high-definition liquid crystal break code display)
Working environment Temperature 0℃～40℃
Cooling method Smart air cooling
Operating mode Mains priority mode/Battery priority mode/Energy saving mode
Battery Type Maintenance-free lead-acid battery/colloid/lithium battery
Package Honeycomb carton

1. Does OEM OR ODM accepted?
Yes, OEM and ODM are available.

2. Can I order a sample to check the quality?
Yes, sample order is welcomed.

3. Do your products have any certifications?
Yes, We have full range of certificates, like CE, RoHs, FCC, PSE, etc.

4. What's the production capacity of your company?
50,000pcs per item every month.

5. How long is the warranty of your products?
We offer one year warranty since the delivery of goods.

6. What's the leading time for mass order?
According to the quantity of the order, we will ship it for you as soon as possible.
